LONGTEC

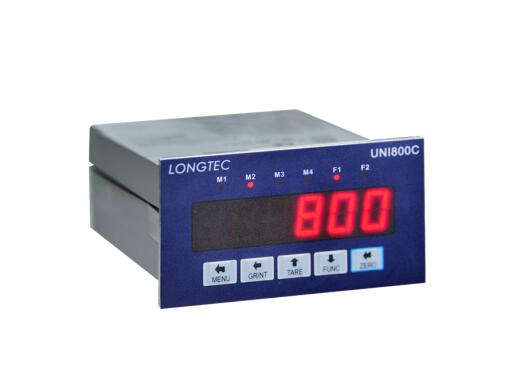

LONGTEC Panel Weighing Transmitter - UNI800

Available: In Stock
  • Want it delivered by Wednesday, 9 April
  • Order within
    10Hours48Minutes50Seconds
Features
  • The display in six-digit digital display, which is mainly used to display weight data or display other functional parameters
  • Serial digital signal output, analog signal output and other functions
  • adopt panel (panel) installation, small size and light weight
  • Each external control input can be used as net weight / gross weight display, tare and zero reset functions
  • Each output can be individually configured as high and low limit output
  • Application field - It is suitable for all kinds of weighing type material level, hopper scale, crane scale, tension and pressure testing machine and other resistance strain load cell applications. It is widely used in process weighing of grain, light industry, metallurgy, building materials, chemical industry, non-ferrous metals, energy, machinery and other industries.
Specifications
  • Power: DC 24v (18V - 36V)
  • Power Consumption: ≤ 6W
  • Operating Temperature: from -5°C to 45°C (23°F to 117°F)
  • Humidity: ≤ 90% relative humidity (no condensation)
  • Overload Display: Display "O.L"
  • Applicable Load Cell: All resistance strain gauge force and load cells
  • Adjustable Zero Voltage Range: 0.05mV ~ 15.0mV
  • Sampling Rate: Max. 200/sec
  • Internal Resolution: 16,000,000
  • Analog Output: 0 ~ 20mA / 4 ~ 20mA / 0 ~ 5V / 0 ~ 10V
  • Input: Four optical coupler isolation input, passive switches
  • Weight: 0.6kg
